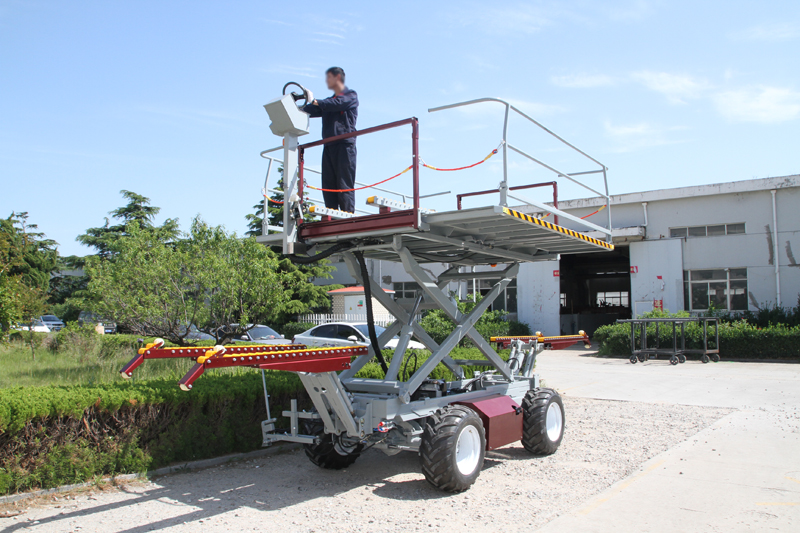

4GP-1200DA 柴油全液壓驅動 采摘作業平臺
4GP-1200DA diesel full hydraulic drive picking platform
描述Description：
4GP-1200DA 柴油全液壓驅動 采摘作業平臺是中頤公司為中大規模園區用戶開發的一款 柴油全液壓全尺寸 4輪4驅 采摘作業平臺，展開作業面3m x 3m，能同時容納作業人員6-8人+2個500公斤標準大果筐，是中頤1200系列平臺的高端產品，具有卓越的越野能力、強勁的動力性能、極好的操作舒適性、高效率、高可靠、高壽命、高燃油經濟性、易維護等特點。
4GP-1200DA diesel full hydraulic drive picking operation platform is a diesel full hydraulic full size four wheel four drive picking operation platform developed by Zoomye Company for medium and large-scale park users. The operating surface is 3m x 3m, which can accommodate 6-8 operators+2 500 kg standard fruit baskets at the same time. It is a high-end product of Zoomye 1200 series platform. It has excellent off-road ability, strong power performance, excellent operation comfort, high efficiency, high reliability High life, high fuel economy, easy maintenance and other characteristics.
適合作物：蘋果、梨、櫻桃、桃子、柑橘、煙草、立體種植的蔬菜等
Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc
適合用戶群： 中大規模園區
Suitable for user groups: medium and large-scale parks
●標配日本洋馬、久保田 柴油發動機
● Japanese Yanmar or Kubota diesel engines
●全時4輪4驅 越野能力強 牽引力大
● Full time 4WD off-road capability, strong traction
●操控簡單易學 行走無級調速
●Easy to operate and learn Stepless speed regulation for walking
●采用高強度車身結構
● High strength body structure
●采用“零”落差工作臺面 設計
● "Zero" drop worktable design
●采用傾角可調護欄結構
● Adopt adjustable angle guardrail structure

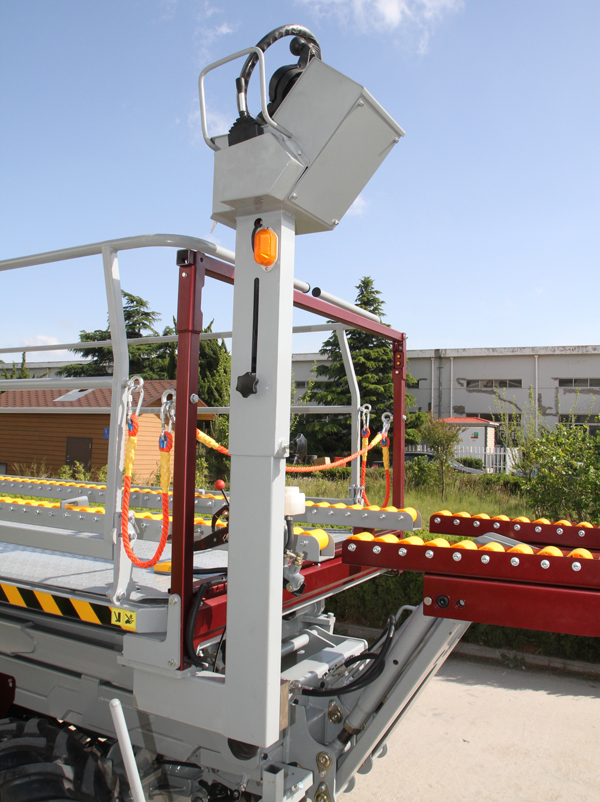

●采用可升降控制臺
● Adopt the lifting console
●采用名牌電器件 電控系統可靠耐用
●Brand electrical components are used, ensures reliable and durable electrical control system
●采用商用車輛高標準線束
● High standard harness of commercial vehicles
●采用一體化儀表 電子監控系統
● Adopt integrated instrument electronic monitoring system
●采用歐美名牌液壓部件 高可靠高效率
● Adopt European and American famous hydraulic components with high reliability and efficiency
●整機結構件激光切割成型 精度極高
●Complete machine structure is formed by laser cutting with high precision
●全系標配 加寬越野輪胎
●Standard widened off-road tire are equipped as a standard for the whole series
●采用抗紫外線耐候油漆涂層
●UV resistant and weather resistant paint coating
●采用重型前后驅動橋
● Heavy duty front and rear drive axles

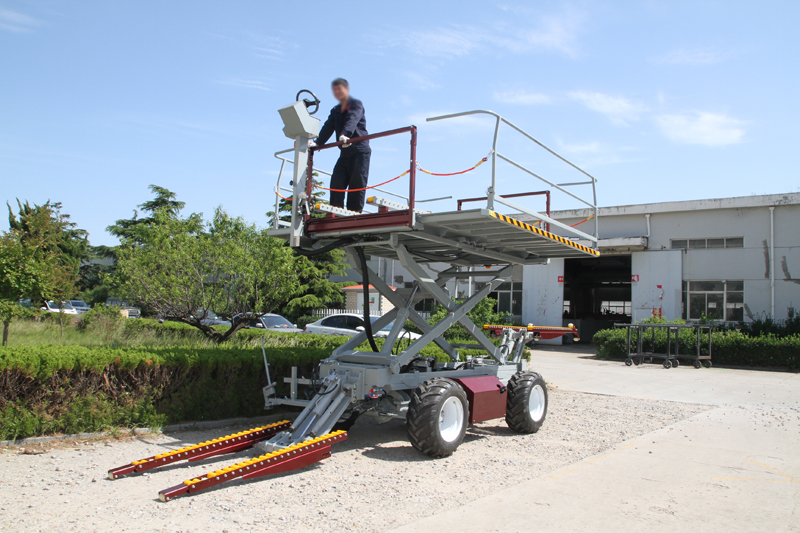

●標配前后液壓舉升叉 裝卸機構 采摘裝卸更便捷
●Standard front and rear hydraulic lifting fork loading and unloading mechanism is more convenient for picking and unloading
4GP-1200DA 果園采摘作業平臺 產品規格表
Product Specification Table of 4GP-1200DA Orchard Picking Platform
序號 Serial No | 項 目 Item | 單位 Unit | 主要參數 Main Parameter |
1 | 型號名稱 Model Name | / | 4GP-1200DA型果園采摘作業平臺 4GP-1200DA series orchard picking platform |
2 | 結構型式 Structural Style | / | 自走式 Self-propelled type |
3 | 驅動型式 Driving Type | / | 四輪驅動(全時四驅）4WD(full-time) |
4 | 升降機構類型 Type of lifting mechanism | / | 剪叉式 Scissor fork type |
5 | 轉向型式Steering type | / | 液壓動力轉向（方向盤） Hydraulic power steering (steering wheel) |
6 | 配套動力型式Type of support power | / | 內燃機（日本洋馬/久保田） Internal combustion engine (Japan Yanmar/Kubota) |
7 | 配套動力Supporting power | kW | 18.5 |
8 | 整機外形尺寸（長×寬×高） Maximum Overall dimension(L*W*H) | mm | 3750×1790×2600 |
9 | 工作臺最大尺寸（長×寬） Maximum dimension of work platform(L*W) | mm | 3000×3000 |
10 | 額定載荷Rated load | kg | 1200 |
11 | 舉升負載量Lifting Load | kg | 1000 |
12 | 升降高度范圍Lifting height range | mm | 1170～2700 |
13 | 最小離地間隙 Minimum ground clearance | mm | 210 |
14 | 輪胎型號（前輪/后輪） Tire type(Front/Rear) | / | 29×12.50-15/29×12.50-15 |
15 | 爬坡能力 Climbing ability | % | 20 |
16 | 輪距/軌距 Wheel tread | mm | 1455 |
17 | 工作臺橫向最大調平角度 Maximum Horizontal leveling angle of work platform | ° | / |
18 | 工作臺縱向最大調平角度 Maximum Longitudinal leveling angle of work platform | ° | / |
19 | 平臺升降速度 Platform rising & falling speed | mm/s | 額定負載升速：60；空載升速：80 額定負載降速：130；空載降速：120 Rated load speed rise: 60; No load speed rise: 80 Rated load deceleration: 130; No load deceleration: 120 |
20 | 最大沉降量Maximum subsidence | mm | 8 |
21 | 行走速度范圍 Travel speed range | m/s | 0～1.94 |
22 | 轉彎半徑Turning radius | m | Abt.4.8 |
※選裝配置Optional:
M常柴25馬力 電噴發動機 M Changchai 25hp EFI engine
N日本洋馬35 馬力 發動機 N Japanese Yanmar 35hp engine
O 高低速 行走系統 O High and low speed traveling system
P 定速巡航 暫停功能 P Cruise control suspension function
Q 定速巡航 自動轉向系統 Q Cruise control automatic steering system
R 平臺橫向調平系統 R Horizontal leveling system of platform
S 平臺縱向調平系統 S Longitudinal leveling system of platform
D 夜間工作燈 D Night work light
E 遮陽蓬 E Sunshade
J 折疊座椅 J Folding seats
C MP3播放器 C MP3 player
I 護欄置物袋 I Guardrail storage bag
*參數表僅描述了基本參數，選裝配置參數請咨詢中頤公司。
*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.
*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。
*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
