產品概述

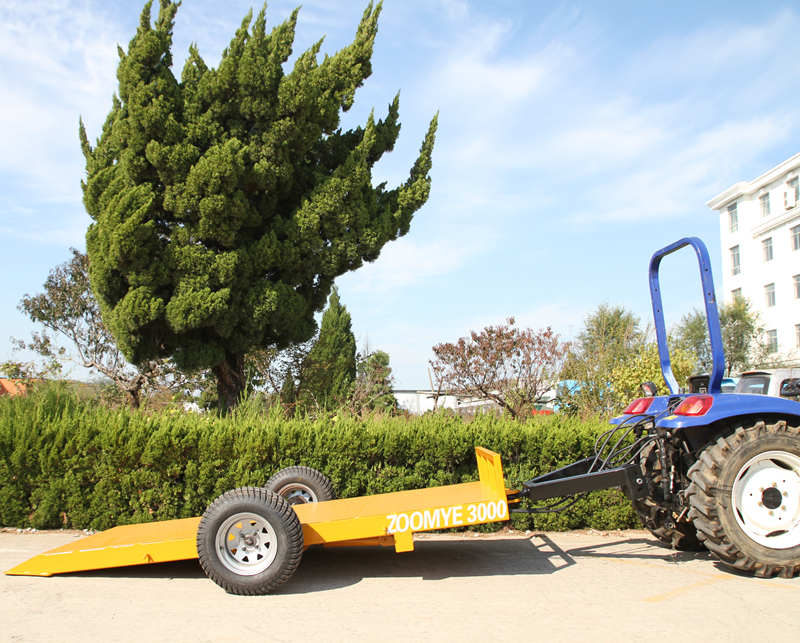

TT2W0-B*底盤升降運輸拖車

TT2W0-B * chassis lifting transport trailer

描述Description：

底盤升降運輸拖車是中頤公司為了解決農場履帶式裝備（履帶式果園管理機、履帶式割草機、履帶式挖掘機、履帶式打藥機、履帶式作業平臺等）轉場緩慢問題、裝卸困難問題（無叉車難裝卸）而研發的一款多用途轉運裝備，它可在無叉車輔助作業工況下靈活裝卸各種物資。該拖車車軸在液壓油缸作用下可進行升降（升降幅度可定制），車箱底板尾部在油缸作用下可完美貼合地面，與地面形成極小夾角，方便履帶式裝備自由上下。其它輪式裝備、果筐、物資等也可通過該拖車自由裝卸而無需叉車輔助。

Chassis lifting transport trailer is a multi-purpose transport equipment developed by Zoomye Company to solve the problem of slow transition and difficult loading and unloading of farm crawler type equipment (crawler orchard management machine, crawler lawn mower, crawler excavator, crawler type pesticide sprayer, crawler type operation platform, etc.). It can flexibly load and unload various materials without forklift assistance. The trailer axle can be lifted and lowered under the action of the hydraulic cylinder (the lifting range can be customized), and the tail of the trunk bottom plate can fit perfectly with the ground under the action of the cylinder, forming a small included angle with the ground, which is convenient for the crawler type equipment to move up and down freely. Other wheeled equipment, fruit baskets, materials, etc. can also be loaded and unloaded freely through the trailer without forklift assistance.

TT2W0-B*底盤升降運輸拖車 產品規格表

Product Specification Table of TT2W0-B * Chassis Lifting transport trailer

序號 Serial No.	項目 Item	單位 Unit	主要參數 Main Parameter
1	產品型號Model Name	/	TT2W0-B*
2	結構型式Structural Style	/	牽引式Traction type
3	配套動力Supporting power	kW	≥22
4	外形尺寸（長×寬×高） Overall dimension(LWH)	mm	3825x1950x850（可定制） (Customizable)
5	底板尺寸（長x寬） Base plate size (L x W)	mm	2720x1300（可定制） (Customizable)
6	額定載荷Rated load	kg	1000（可定制）(Customizable)
7	輪胎型號Tire type	/	23x8.5-12（可定制）(Customizable)
8	轉彎半徑（與拖拉機相關）轉彎半徑（與拖拉機相關） Turning radius (Related to tractors)	m	約3.2（雷沃M704拖拉機牽引） Abt. 3.2 (towed by Lovol M704)
9	升降高度范圍 Lifting height range	mm	0-602(可定制) (Customizable)

※選裝配置Optional:

A液壓絞盤 A Hydraulic winch

B電動絞盤 B Electric winch

C 車載液壓站 C On board hydraulic station

*參數表僅描述了基本參數，高配高功率及選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
