產品概述

FE1D01-02修剪機

FE1D01-02 Trimmer

描述Description：

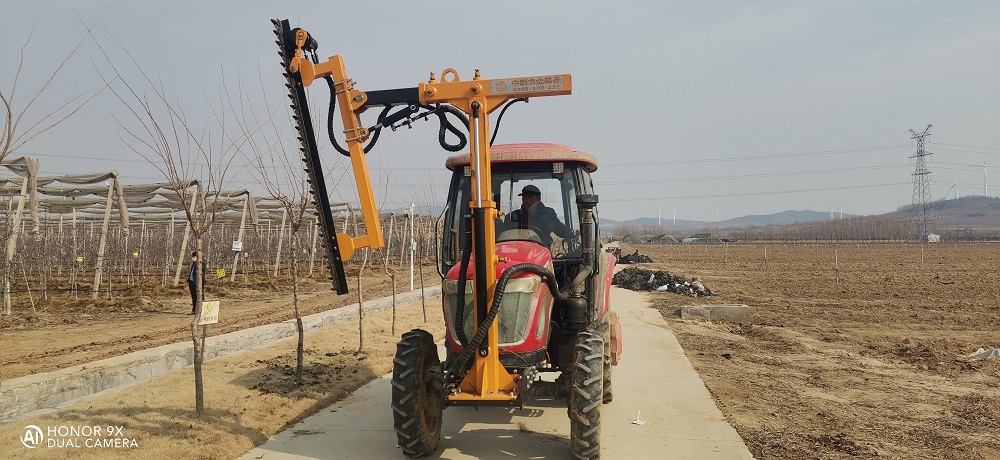

FE1D01-02修剪機是中頤公司根據現代化寬行密植果園冬季和夏季、秋季對行間枝條進行統一初步修剪而開發的機械化修剪裝備。整機全液壓傳動與控制，操作簡便，修剪效率高！修剪機安裝于拖拉機前部，操作者通過電控或手動控制液壓閥可靈活對修剪機的修剪高度、修剪角度、側伸寬度進行調節，工作輕松便捷！

FE1D01-02 pruning machine is a mechanized pruning equipment developed by Zoomye Company according to the unified preliminary pruning of branches between rows in winter, summer and autumn in modern wide row and dense planting orchards. The whole machine is fully hydraulically driven and controlled, with simple operation and high trimming efficiency! The trimmer is installed at the front of the tractor. The operator can flexibly adjust the trim height, trim angle and side extension width of the trimmer through the electric control or manual control of the hydraulic valve. It is easy and convenient to work!

FE1D01-02修剪機產品規格表

Product Specification Sheet of FE1D01-02 Trimmer

序號 Serial No	項目 Item	單位 Unit	主要參數 Main Parameter
1	型號名稱 Model Name	/	FE1D01-02修剪機 Pruning machine
2	外形尺寸（長寬高） Maximum Overall dimension(LWH)	mm	15505702600mm
3	剪刀高度（不含車輛高度） Scissor height (excluding vehicle height)	mm	2600mm+1000mm（液壓缸行程） (Hydraulic cylinder stroke)
4	橫向寬度 (距車中心） Transverse width (from the vehicle center)	mm	820mm+700mm（液壓缸行程） (Hydraulic cylinder stroke)
5	修枝角度 Pruning angle	°	90 ±20
6	修枝直徑 Pruning diameter	mm	≤30
7	整機重量 weight	kg	270
8	驅動方式 Driving mode	\	液壓驅動Hydraulic drive
9	配套動力Supporting power	\	≥50馬力（中橋拖拉機）(Medium axle tractor)
10	安裝方式 Installation method	\	拖拉機前置安裝 Tractor front mounting
11	安裝后高度 Height after installation	mm	2400mm+500mm（根據車輛實際安裝高度according to the actual installation height of the vehicle)+1000mm（液壓缸行程hydraulic cylinder stroke)

※選裝配置Optional：

C獨立液壓工作站 Independent hydraulic workstation

*參數表僅描述了基本參數，高配高功率及選裝配置參數請咨詢中頤公司。

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*規格參數及外觀，隨產品開發不斷更新，具體參數請咨詢中頤公司，以中頤公司最新參數為準，以上參數不作為整機驗收依據。咨詢電話 4008-400-232

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail. The above parameters are not used as the basis for the acceptance of the complete machine. Consulting hotline: 4008-400-232
