荷蘭MDE Globe挖樹機

聯系中頤

產品屬性

所屬類別：進口挖樹機系列
商品來源：中頤農裝
瀏覽次數：1517
發布日期：2021-10-07 09:52:22

產品概述

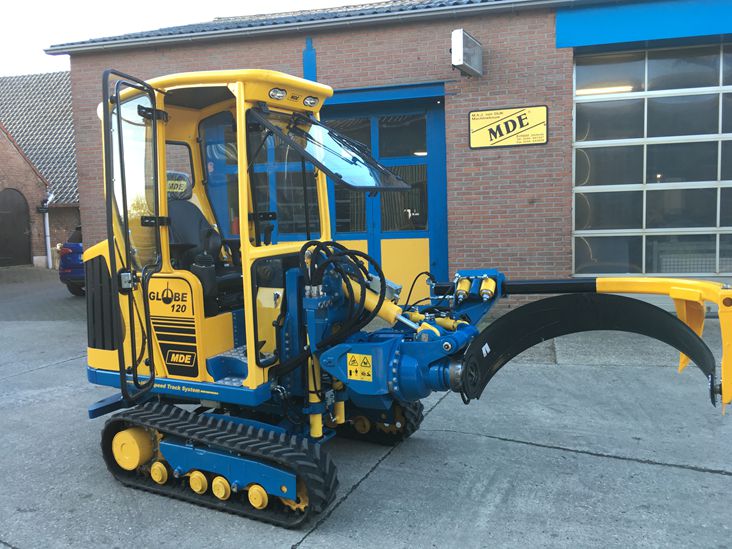

MDE Globe 挖樹機

MDE Globe Tree Mover

描述Description：

荷蘭MDE Globe挖樹機是一款專門設計的苗圃挖樹機器，具有作業效率高、機動靈活性強的特點。創新和最佳的部件組合成了MDE挖樹機，實現了最佳的性能。MDE挖樹機的質量是經用戶多年驗證的，具有較高的附加值。

MDE Globe是一種特殊設計的樹木挖掘機器，在樹木苗圃內具有最佳容量和靈活性。在歐洲同類產品中MDE Globe是行駛速度最快的，也是挖樹最快的機器。機器的各種功能確保操作員體驗到極大的舒適。

每個MDE Globe都有自己的專利刀片固定系統，因此刀片可以在30秒內不用工具更換。該系統確保葉片以液壓方式固定在機器上，但也可以閃電般地更換。

The Netherlands MDE Globe tree digger is a specially designed tree digger for nurseries, which is characterized by high operating efficiency and strong flexibility. Innovation and the best components combined into a MDE machine for maximum performance.

Proven quality of MDE, tree diggers with added value.

The MDE Globe is a special designed machine for digging trees with the best capacity and flexibility within the tree nursery. The Globe is by far the fastest in his class by km/h, but also in digging trees. Various features of the machine ensures that the operator of the machine experiences a great comfort.

Each MDE Globe has it own patented Blade-fix system, so a blade can be changed without tools in thirty seconds. The system ensures that the blade is clamped hydraulically to the machine, but can also be changed at lightning speed.

※選裝配置：

1.攝像頭;

2.舒適駕駛室，配備有：

- 暖風裝置;

- 窗戶配有有色安全玻璃

- 擋風玻璃，可以打開，提供一個擋風玻璃雨刷。

- 豪華空氣懸浮座椅，帶座椅加熱功能，可調節扶手。

- 集成式門把手

- 帶空氣彈簧的車門

- 駕駛室外邊緣是平滑的，以防止損壞樹木。

3.竹竿插桿器：用于在樹旁鉆孔，插竹竿。地鉆由PLC控制。自動控制時，液位傳感器控制PLC，手動控制時，司機自己用操縱桿控制鉆孔機。

4.刀片支架：它安裝在Globe的后面，因此可以在Globe上運輸兩個額外的刀片。

5.苗木支架：這是一個可調節的支架，安裝在機器的前端。當一棵樹被挖好后，樹干會靠在支撐物上，防止樹倒下。

6.樹根網支架+儲物箱：安裝在Globe的背面，用它可以方便地運輸樹根網和麻袋片。

7.拖桿：安裝在Globe的背面。

型號：

Globe 100，可挖根球直徑30厘米--100厘米。

Globe 120，可挖根球直徑為30厘米--120厘米。

Globe 140，可挖根球直徑為60厘米--140厘米。

※ Optional configuration:

A- Camera;

B- Cabin which is provided with:

C- Heating;

D- Windows with tinted safety glass;

E- Windscreen, which can be opened up, provided with a windscreen wiper;

F - Luxurious airsuspended seat with seat heating with adjustable armrests;

G- Integrated door handles;

H- Doors with gas springs

I- On the outside, the cabin is completely flat and has round corners to prevent tree damage.

J- Canedrill: it is used to drill holes beside trees, where sticks can be inserted. The canedrill can be mounted on the Globe, as well as the controldesk. The canedrill can be operated from this control desk. The cane drill os electrical controlled by a PLC. By automatic control, the level sensor controls the PLC and with manual control, the driver himself controls the canedrill with a joystick.

K- Blade holder: it is mounted at the back of the Globe, so two extra blades can be transported on the Globe.

L- Tree support: This is an adjustable support which is mounted on the front of the Globe. When a tree has been digged, the trunk leans against the support and prevents the tree from falling over.

M- Wire basket support + box for juke: this is mounted on the back of the Globe, with which wire baskets and jute can be easily transported;

N- Towbar: mounted on the back of the Globe.

The following types can be supplied:

Globe 100, a rootball diameter of 30 cm to 100 cm can be made.

Globe 120, a rootball diameter of 30 cm to 120 cm can be made.

Globe 140, a rootball diameter of 60 cm to 140 cm can be made.
